Tube Axial Flow Fans - Tube Axial Fan

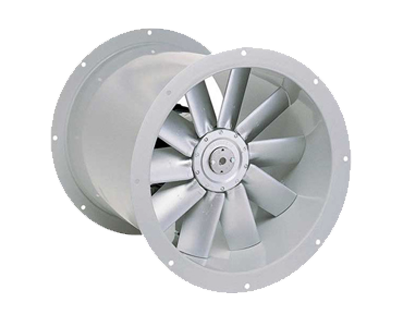

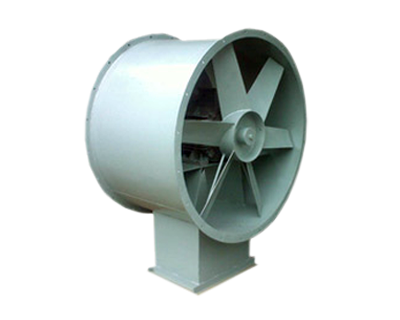

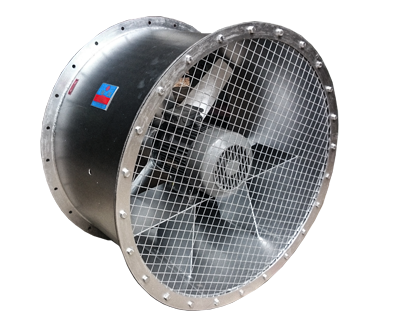

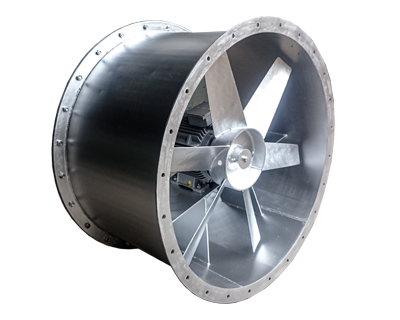

Tube Axial Flow Fans

Request A Quote

Tube Axial Flow Fans
Fan Size
Speed
Motor
Direct
Drives
Capacity (HP)
V.Belt
Drive
Phase
Free
Air Delivery CFM
Capacities in CFM at static
pressures below in WG
Inches
(approx)
mm
RPM
5mm
10mm
15mm
20mm
25mm
35mm
9
228
2880
¼
-
1
-
-
-
-
-
-
-
12
305
1420
90*
1/8
1
1000
900
800
300
-
-
-
2880
340*
½
1 & 3
1600
1400
1200
1000
700
-
-
2880
½
½
1 & 3
1900
1500
1350
1200
1000
600
-
15
380
1420
150*
1/8
1
2050
1950
1600
1450
950
-
-
18
455
1420
340*
½
1 & 3
3060
2850
2600
2250
1950
-
-
2880
1 ½
1 ½
3
5500
4500
3500
3000
2500
2000
1800
24
610
1420
1
1 ½
3
6500
6410
5550
4680
3220
-
-
27.5
700
1420
2
3
3
10600
10550
10250
8200
7600
5850
-
31.5
800
940
1
1 ½
3
10500
9350
7600
5850
-
-
-
1420
3
5
3
1600
15400
14600
13450
12300
11400
8190
36
915
940
3
3
3
19500
17500
15400
12000
10000
-
-
1420
5
7 ½
3
26000
24500
23100
21600
20000
19000
17500
39.5
1000
940
3
3
3
21100
19300
18150
15800
13450
-
-
47.5
1200
720
5
5
3
26600
25200
22800
17600
-
-
-
940
7 ½
7 ½
3
35700
33900
32800
31000
29200
26300
18700
Through Axial Flow Fans the Air or Gas flows parallel or in line with the impeller axis.

Vishwakarma Axial Flow Fans covers a wide range of Air quantities and Pressures, and air suitable for General

Ventilation, Air conditioning & Fume Extraction plants as well as special Industrial installations. All Vishwakarma Axial Flow Fans have cast Aluminium alloy impellers with high efficiency aerofoil section blades, They are designed for an optimum relation between air quantity, pressure and power consumption.

CONSTRUCTIONSAL DETAILS :

CASING : The casing or body is fabricated from M. S. plates in welded construction fitted with flanges on both the ends to facilitate duct connection or to provide Birdscreen.

IMPELLER : The impeller is of Aerofoil section cast in Aluminium alloy, dynamically balanced as per VDI 2060 standard.
